Specification
· Projection Technology: 3LCD Technology
· Native Resolution: 1024 x 768 (XGA)
· Aspect Ratio: 4:3
· Contrast Ratio: 10000:1
· Brightness: 9000 ANSI Lumen (approx. 80% in Eco Mode), with std. optional lense
· Lamp: 420 W UHP AC (280 W UHP AC Eco Mode)
· Lens/ Adjustment: motorized lens options; manual lens options
· Keystone correction: +/- 40° manual horizontal / +/- 40° manual vertical
· Projection Distance [m]: 0.7 – 50.9 (depend on lens selection)
· Supported Resolutions: 4096 x 2160 (4k); 2560 x 1600 (WQXGA); 2048 x 1080 (2k); 1920x1200 (WUXGA) - 640x480 (VGA); 1080i/50/60; 1080p/24/25/30/50/60; 720p/60; 720p/50; 576i/50; 576p/50; 480p/60; 480i/50

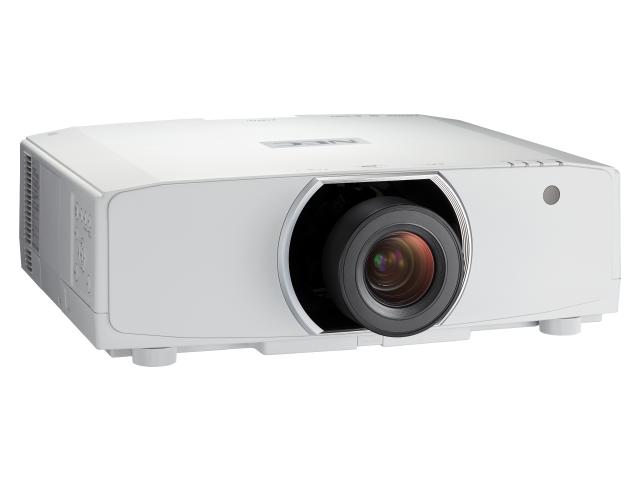

The NEC PA903X – the “multi-tool” installation projector
If extraordinary visualisation, brilliant colours and superb dynamic contrast is key for your business, then the NEC PA903X should be your first choice.
Connectivity
RGB (analog): Input: 1 x Mini D-sub 15-pin, compatible to component (YPbPr)
Digital Input: 1 x DisplayPort; 1 x HDBaseT; 2
x HDMI™ supporting HDCP 2.2
Digital Output: 1 x HDBaseT supporting HDCP 2.2
Audio Input: 1 x DisplayPort Audio support; 1
x HDBaseT audio support; 2 x 3.5 mm Stereo Mini Jack for Computer analog; 2 x
HDMI audio support
Audio Output: 1 x 3.5 mm Stereo Mini Jack (variable)
Control: Input: 1 x D-Sub 9 pin (RS-232), Ethernet
LAN: 1 x RJ45
USB: 1 x Type A (USB 2.0 high speed)
3D Sync: Output: 1 x Mini DIN 3pin
